Place Of Origin: Hebei, China
Material: Top-quality Low Carbon Steel, High quality low carbon iron wire
Type: WELDED PANEL
Toepassing: Fence/Construction
Technique: Welded Mesh
Model Number: Galvanized Welded Panel
Brand Name: Haoyu
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Aflevertijd: 15-21 Days, 20-30 Days

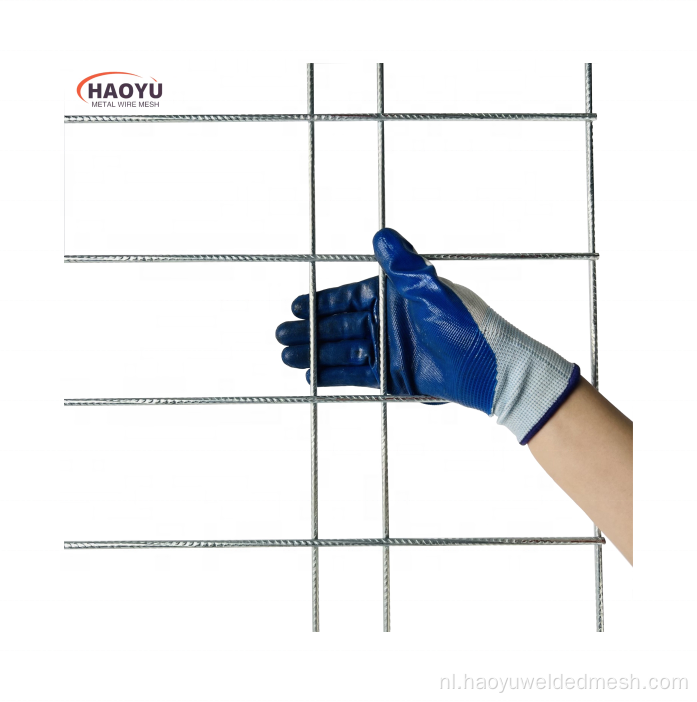

Naam van product: Galvanized Welded Panel
Length: Customization
Width: customization
Hole Shape: Square
Wire Gauge: BWG 8-26
Standaard: ISO / TUV
Propety: Acid resistance / alkali resistance / Corrosion resistance
Tons / Per Month: 700
| Verkoopeenheden | : | roll |
| Pakkettype | : | In rol / waterdicht papier / plastidip merk |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
PRODUCT CATEGORY
|
PRICE
|
PRODUCT LIFE
|
AMOUNT OF ZINC COATED
|
|
Electric Galvanized Before Welded Wire Mesh
|
Most cheap one
|
4 years
|
≤10 microns
|
|
Electric Galvanized After Welded Wire Mesh
|
|
7 years
|
15-30 microns
|
|
Hot-dipped Galvanized Welded Wire Mesh
|
Most expensive one
|
10 years
|
Around 100 microns
|
|
Raw Material
|
Chemical composition
|
|
|
|
|
Physical properties
|
|
Process Properties
|
|||||
|
Q195
（Low Carbon Steel)
|
C
|
S
|
SI
|
Mn
|
P
|
Rm（Mpa）
|
A/%
|
Cold bend 180°
|
|||||
|
|
0.06
|
0.025
|
0.09
|
0.32
|
0.026
|
350
|
34.0
|
Qualified
|
|||||
|
HOLE SIZE (MESH)
|
|
WIRE DIAMETER
|
PACKING Dia.(mm)
|
Width/Length
|
||||
|
1/4" x 1/4"
|
6.35mm x 6.35mm
|
BWG 14-25
|
215
|
3' x 100'
4' x 100'
5' x 100'
|
||||
|
3/8" x 3/8"
|
9.53mm x 9.53mm
|
|
250
|
|
||||
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
|
230-300
|
|
||||
|
5/8" x 5/8"
|
15.87mm x 15.87mm
|
|
260
|
|
||||
|
3/4" x 3/4"
|
19.05mm x 19.05mm
|
|
240-350
|
|
||||
|
1" x 1"
|
25.4mm x 25.4mm
|
|
255-400
|
|
||||
|
1" x 1/2"
|
25.4mm x 12.7mm
|
|
265-335
|
|
||||
|
1" x 2"
|
25.4mm x 50.8mm
|
|
310-390
|
|
||||
|
2" x 2"
|
50.8mm x 50.8mm
|
|
|
|
||||
|
4" x 4"
|
101.6mm x 101.6mm
|
|
|
|
||||
|
6" x 6"
|
152.4mm x 152.4mm
|
|
|
|
||||
|
|
|
|
|
|
||||
